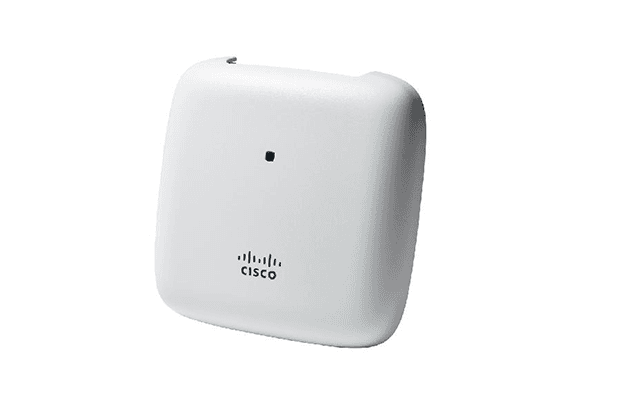

Cisco Business CBW140AC-S image 1
Wireless Access Points
Cisco Business CBW140AC-S
2x2 MU-MIMO 802.11ac Wave 2 ceiling access point with one Gigabit PoE port.
- 802.11ac Wave 2 with 2x2 MU-MIMO, up to 867 Mbit/s on 5 GHz
- One Gigabit Ethernet port with 802.3af/at PoE-in
- Up to 400 clients per access point, 50 access points per network
- Managed with the Cisco Business Mobile app; mesh supported
Technical details
Specifications
22 specification rows
StandardIEEE 802.11ac Wave 2
MIMO2x2 single-user and multi-user MIMO, two spatial streams
5 GHz data rateUp to 867 Mbit/s
Channels20, 40 and 80 MHz; DFS
2.4 GHz antennaInternal, 2 dBi gain
5 GHz antennaInternal, 4 dBi gain
Transmit power2.4 GHz up to 20 dBm; 5 GHz up to 20 dBm
SecurityWPA2, 802.1X, RADIUS, 802.11r and 802.11i
Max clients200 per radio, 400 per access point, 1000 per system
Max access points50 (recommended up to 25)
Max mesh extenders25 per access point, up to 8 hops
Ethernet1 x Gigabit Ethernet (10/100/1000BASE-T), PoE
ConsoleRJ-45 console port (not functional)
Memory1 GB DRAM, 256 MB flash
CPU710 MHz quad core
Dimensions (W x L x H)150.8 x 150.8 x 33 mm (without mounting bracket)
Weight0.40 kg (14 oz)
Power802.3af/at PoE-in; 8.3 W maximum draw
Operating temperature0°C to 50°C (32°F to 122°F)
Storage temperature-30°C to 70°C (-22°F to 158°F)
Operating humidity10% to 90%, noncondensing
WarrantyCisco Business limited lifetime hardware warranty
