MikroTik RB5009UG+S+IN image 1
Routers

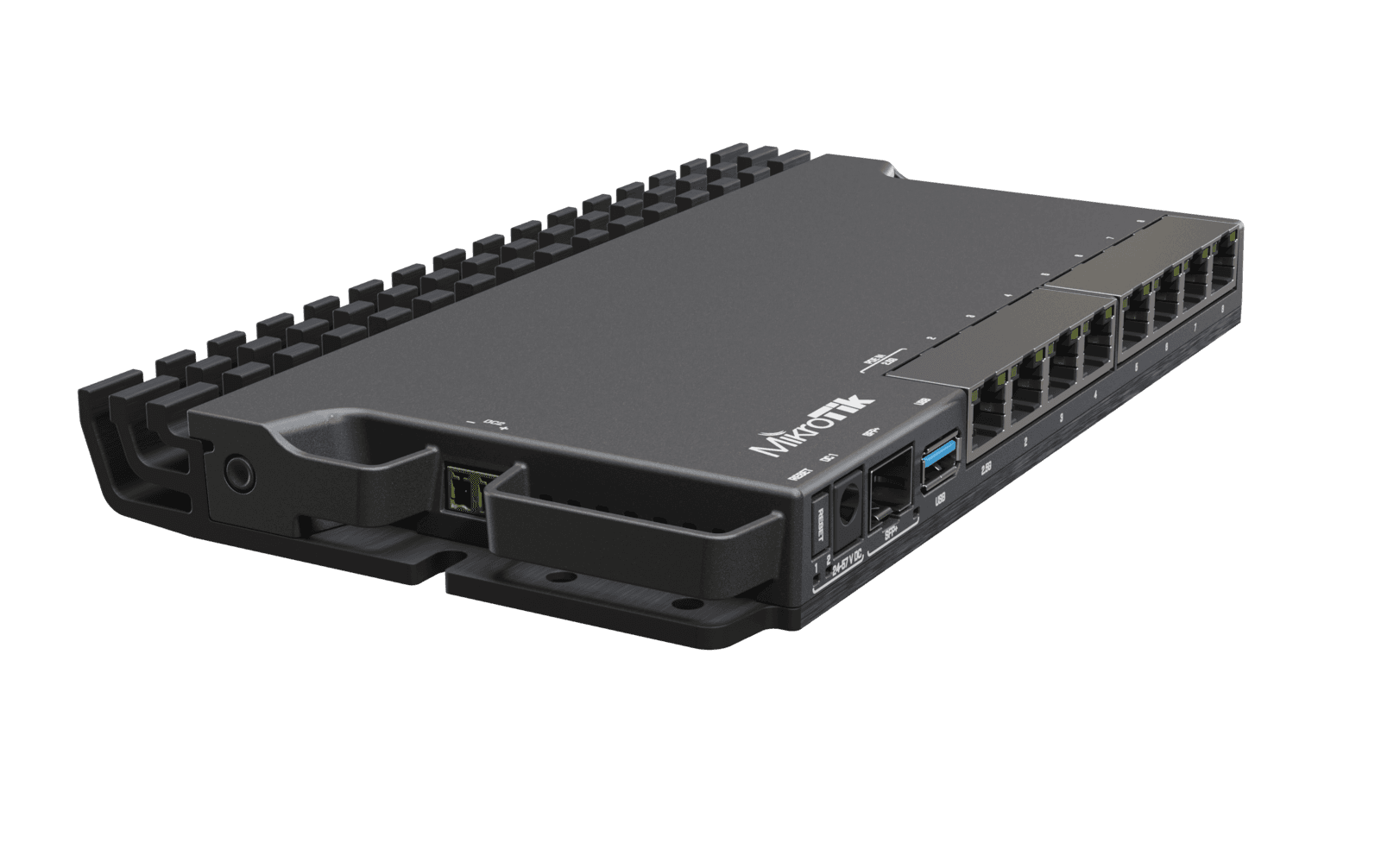

MikroTik RB5009UG+S+IN
Heavy-duty RouterOS router with seven Gigabit ports, one 2.5G port and a 10G SFP+ cage.
- Seven Gigabit Ethernet ports and one 2.5G Ethernet port
- One 10G SFP+ cage for fibre or DAC uplinks
- Quad-core 88F7040 CPU up to 1.4 GHz, 1 GB RAM, 1 GB NAND
- Three DC inputs, 802.3af/at PoE-in, USB 3.0, passive cooling
Technical details
Specifications
31 specification rows
ArchitectureARM 64bit
CPU88F7040
CPU core count4
CPU nominal frequency350-1400 (auto) MHz
CPU Threads count4
Switch chip model88E6393
Dimensions220 x 125 x 22 mm
RouterOS license5
Operating SystemRouterOS v7
Size of RAM1 GB
Storage size1 GB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 60°C
Number of DC inputs3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage24-57 V
2-pin terminal input Voltage24-57 V
Max power consumption25 W
Max power consumption without attachments14 W
PoE in802.3af/at
Cooling typePassive
PoE in input Voltage24-57 V
10/100/1000 Ethernet ports7
Number of 2.5G Ethernet ports1
SFP+ ports1
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1.5
CPU temperature monitorYes
CertificationCE, EAC, ROHS
