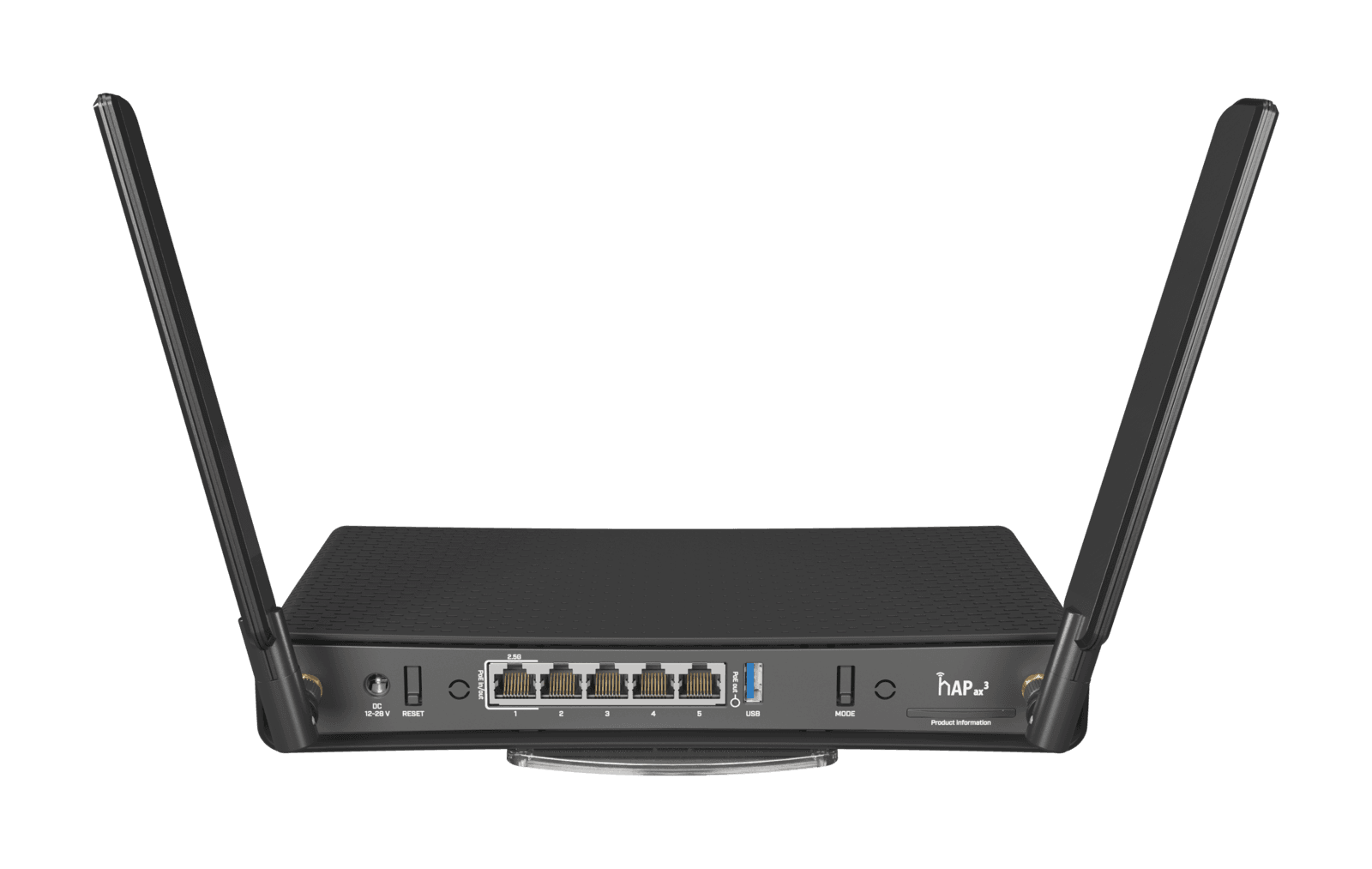

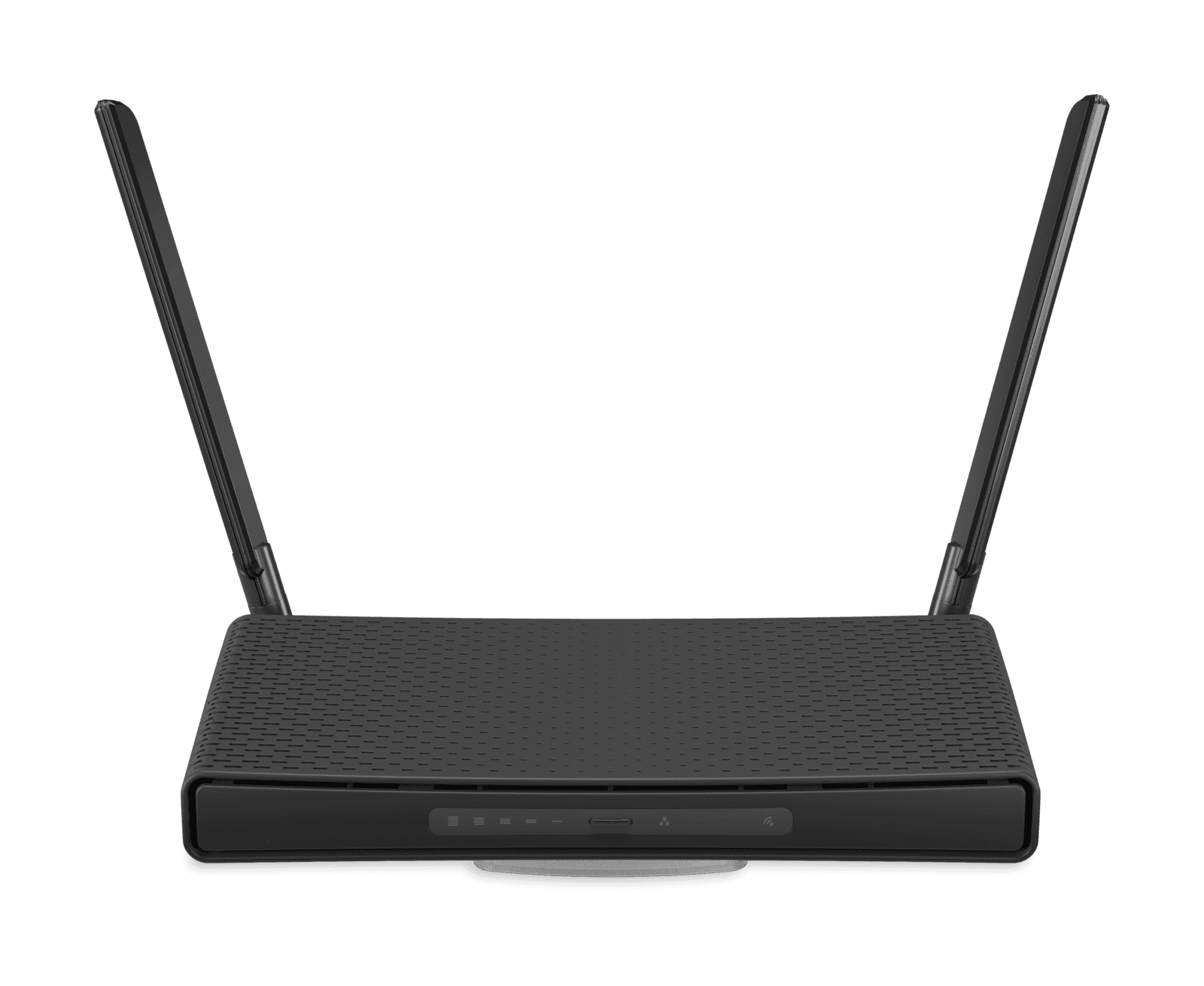

MikroTik hAP ax³ image 1
Routers
MikroTik hAP ax³
Wi-Fi 6 AX1800 dual-band router with a 2.5G Ethernet port, 1 GB RAM and RouterOS v7.
- Wi-Fi 6 (802.11ax) dual-band, AX1800: 574 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz
- One 2.5G Ethernet port and four Gigabit ports, one with passive PoE-out
- Quad-core IPQ-6010 CPU, 1 GB RAM, 128 MB NAND
- USB 3.0 port, passive cooling, RouterOS v7
Technical details
Specifications
50 specification rows
ArchitectureARM 64bit
CPUIPQ-6010
CPU core count4
CPU nominal frequencyauto (864 - 1800) MHz
CPU Threads count4
Switch chip modelIPQ-6010
RouterOS license6
Operating SystemRouterOS v7
Size of RAM1 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
Wireless 2.4 GHz Max data rate574 Mbit/s
Wireless 2.4 GHz Number of chains2
Wireless 2.4 GHz standards802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz3.3
Wireless 2.4 GHz chip modelQCN-5022
Wireless 2.4 GHz generationWi-Fi 6
Wireless 5 GHz Max data rate1200 Mbit/s
Wireless 5 GHz Number of chains2
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz5.5
Wireless 5 GHz chip modelQCN-5052
Wireless 5 GHz generationWi-Fi 6
WiFi speedAX1800
10/100/1000 Ethernet ports4
Number of 1G Ethernet ports with PoE-out1
Number of 2.5G Ethernet ports1
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1.5
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-28 V
Max power consumption38 W
Max power consumption without attachments15 W
PoE inPassive PoE
Cooling typePassive
PoE in input Voltage18-28 V
PoE-out portsEther 1
PoE outPassive PoE
Low voltage PoE-Out current limit0.625 A
Max total out (A)0.625 A
Total output current0.625
Total output power15
CertificationCE, FCC, IC, EAC, ROHS
IP20
CPU temperature monitorYes
Mode buttonYes
