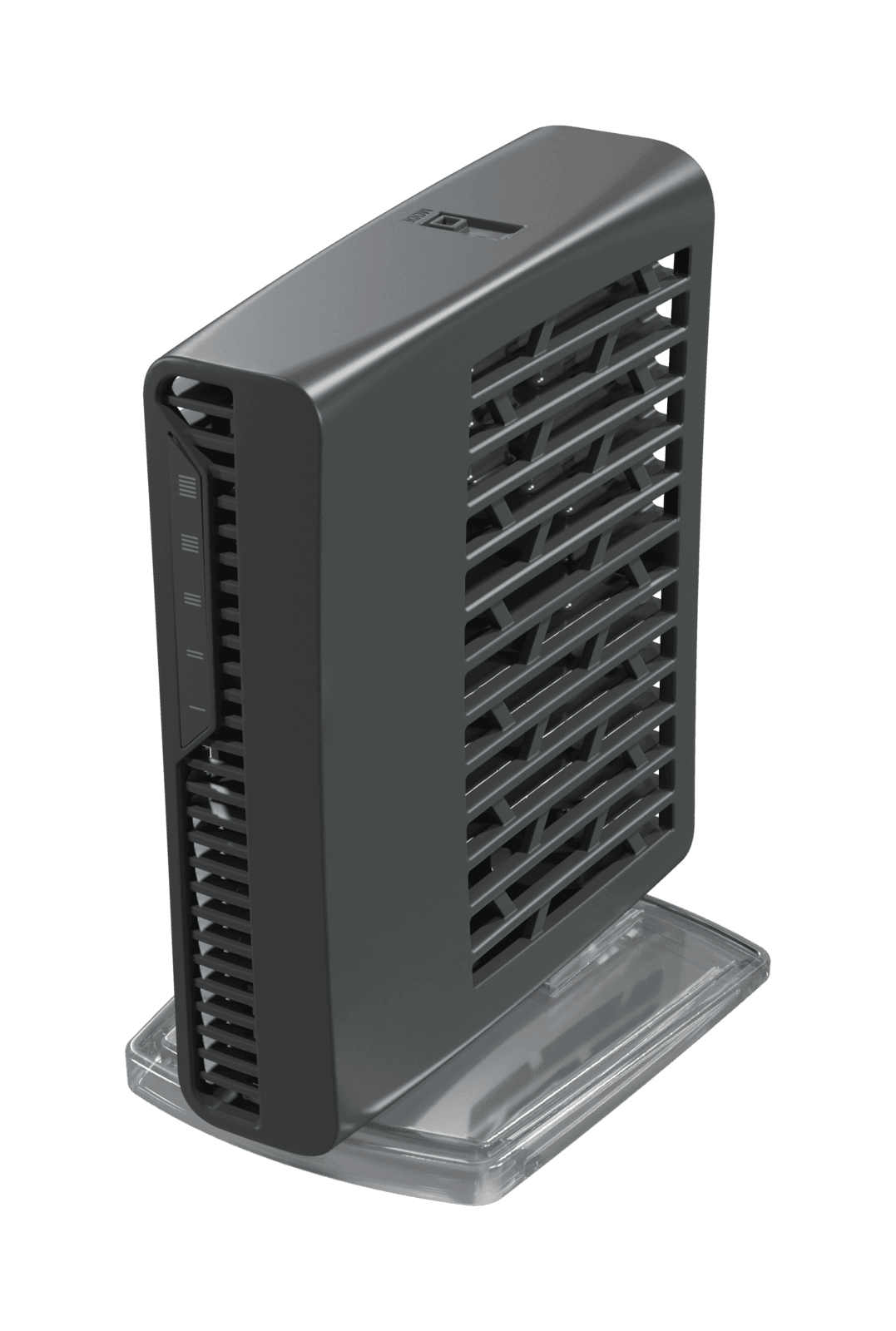

MikroTik hAP ax² image 1
Routers
MikroTik hAP ax²
Compact Wi-Fi 6 AX1800 dual-band router with five Gigabit ports and PoE-in/PoE-out.
- Wi-Fi 6 (802.11ax) dual-band, AX1800: 574 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz
- Five Gigabit Ethernet ports, one with passive PoE-out
- Quad-core IPQ-6010 CPU, 1 GB RAM, 128 MB NAND
- 802.3af/at PoE-in or 12-28 V DC input, RouterOS v7
Technical details
Specifications
45 specification rows
ArchitectureARM 64bit
CPUIPQ-6010
CPU core count4
CPU nominal frequency864 MHz
CPU Threads count4
Switch chip modelIPQ-6010
RouterOS license4
Operating SystemRouterOS v7
Size of RAM1 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 50°C
Wireless 2.4 GHz Max data rate574 Mbit/s
Wireless 2.4 GHz Number of chains2
Wireless 2.4 GHz standards802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz4
Wireless 2.4 GHz chip modelQCN-5022
Wireless 2.4 GHz generationWi-Fi 6
Wireless 5 GHz Max data rate1200 Mbit/s
Wireless 5 GHz Number of chains2
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz4.5
Wireless 5 GHz chip modelQCN-5052
Wireless 5 GHz generationWi-Fi 6
WiFi speedAX1800
10/100/1000 Ethernet ports5
Number of 1G Ethernet ports with PoE-out1
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-28 V
Max power consumption27 W
Max power consumption without attachments12 W
PoE inPassive PoE
Cooling typePassive
PoE in input Voltage18-28 V
PoE-out portsEther 1
PoE outPassive PoE
Low voltage PoE-Out current limit600 mA
Max total out (A)0.6 A
Total output current0.6
Total output power16.8W
CertificationCE, FCC, IC, EAC, ROHS
IP20
CPU temperature monitorYes
Mode buttonYes
