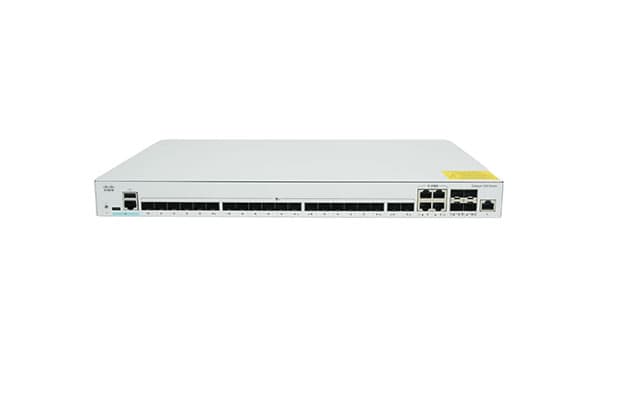

Cisco Catalyst C1300-24XS image 1
Switches
Cisco Catalyst C1300-24XS
20-port 10G SFP+ Layer 3 managed switch with four 10G copper/SFP+ combo ports.
- 20 x 10G SFP+ ports plus 4 x 10G copper/SFP+ combo ports
- 480 Gbps switching capacity, 357.14 Mpps forwarding rate
- Layer 3 routing with up to 7,168 IPv4 routes and 256 IP interfaces
- 1 x Gigabit Ethernet out-of-band management port, limited lifetime warranty
Technical details
Specifications
22 specification rows
ModelC1300-24XS
Total system ports24 x 10G Ethernet (20 x SFP+, 4 x copper/SFP+ combo) plus 1 x GE OOB management
Switching capacity480 Gbps
Forwarding rate357.14 Mpps (64-byte packets)
Dimensions (W x D x H)444.3 x 286 x 43.94 mm (17.49 x 11.26 x 1.73 in)
Weight4.15 kg (9.15 lb)
Cooling1 fan, 27.6 dBA at 25°C
MTBF at 25°C993,232 hours
WarrantyLimited lifetime
Switching
VLANsUp to 4,094 simultaneous VLANs
Spanning TreeSTP, RSTP, MSTP, PVST+ and Rapid PVST+
Link aggregationLACP and static link aggregation
MulticastIGMP snooping with querier, up to 4,000 groups
IPv4 routingUp to 7,168 dynamic and static IPv4 routes and 256 IP interfaces
IPv6 routingWire-speed IPv6 routing
Dynamic routingRIPv2
Policy-based routingIPv4 and IPv6 ACL-based next-hop selection
Power
Power consumption110 V: 49.46 W; 220 V: 49.02 W
Heat dissipation220.77 BTU/hr
Operating temperature-5°C to 50°C (23°F to 122°F)
Storage temperature-25°C to 70°C (-13°F to 158°F)
Operating humidity10% to 90%, relative, noncondensing
