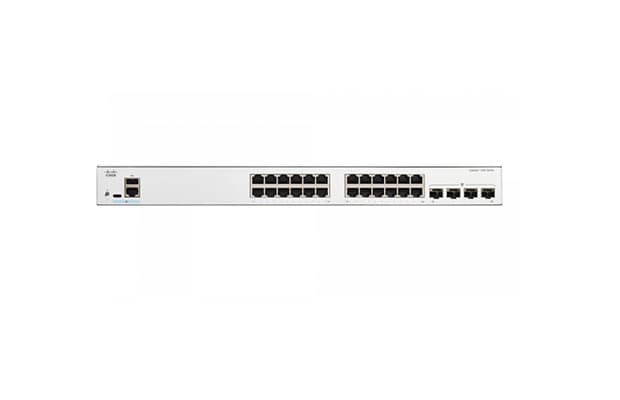

Cisco Catalyst C1300-24T-4G image 1
Switches
Cisco Catalyst C1300-24T-4G
24-port Gigabit Layer 3 managed switch with four SFP uplinks.
- 24 x Gigabit Ethernet ports plus 4 x Gigabit SFP uplinks
- 56 Gbps switching capacity, 41.67 Mpps forwarding rate
- Layer 3 routing with up to 990 IPv4 routes and 128 IP interfaces
- Fanless, 2.63 kg, limited lifetime warranty
Technical details
Specifications
22 specification rows
ModelC1300-24T-4G
Total system ports28 x Gigabit Ethernet (24 x RJ-45, 4 x SFP)
Switching capacity56 Gbps
Forwarding rate41.67 Mpps (64-byte packets)
Dimensions (W x D x H)444.3 x 240 x 43.94 mm (17.49 x 9.45 x 1.73 in)
Weight2.63 kg (5.80 lb)
CoolingFanless
MTBF at 25°C664,987 hours
WarrantyLimited lifetime
Switching
VLANsUp to 4,094 simultaneous VLANs
Spanning TreeSTP, RSTP, MSTP, PVST+ and Rapid PVST+
Link aggregationLACP and static link aggregation
MulticastIGMP snooping with querier
IPv4 routingUp to 990 dynamic and static IPv4 routes and 128 IP interfaces
IPv6 routingWire-speed IPv6 routing
Dynamic routingRIPv2
Policy-based routingIPv4 and IPv6 ACL-based next-hop selection
Power
Power consumption110 V: 14.6 W; 220 V: 14.8 W
Heat dissipation50.5 BTU/hr
Operating temperature-5°C to 50°C (23°F to 122°F)
Storage temperature-25°C to 70°C (-13°F to 158°F)
Operating humidity10% to 90%, relative, noncondensing
