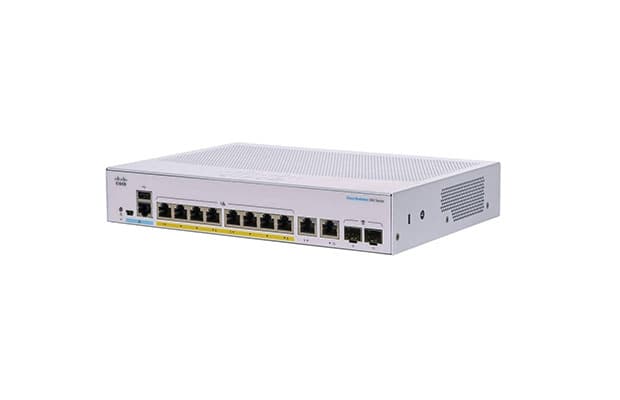

Cisco CBS350-8P-2G-EU
8-port Gigabit PoE+ managed switch with two Gigabit combo uplinks and a 67 W PoE budget.
- 8 x Gigabit Ethernet PoE+ ports plus 2 x Gigabit combo RJ-45/SFP uplinks
- 67 W PoE budget, 802.3af/at on all 8 access ports
- 20 Gbps switching capacity, 14.88 Mpps forwarding rate
- Fanless, limited lifetime warranty with next-business-day replacement
Technical details
Specifications
24 specification rows
ModelCBS350-8P-2G-EU
Total system ports10 x Gigabit Ethernet (8 x PoE+ RJ-45, 2 x Gigabit combo)
PoE budget67 W dedicated to PoE
Switching capacity20 Gbps
Forwarding rate14.88 Mpps (64-byte packets)
Dimensions (W x D x H)268 x 272 x 44 mm (10.56 x 10.71 x 1.73 in)
Weight2.59 kg (5.71 lb)
CoolingFanless
MTBF at 25°C1,786,412 hours
WarrantyLimited lifetime with next business day advance replacement (where available)
Switching
VLANsUp to 4,094 simultaneous VLANs
Spanning TreeSTP, RSTP, MSTP, PVST+ and Rapid PVST+
Link aggregationLACP and static link aggregation
MulticastIGMP snooping with querier
IPv4 routingWire-speed routing, up to 990 static routes and 128 IP interfaces
IPv6 routingWire-speed IPv6 routing
Dynamic routingRIPv2
Policy-based routingIPv4 and IPv6 ACL-based next-hop selection
Power
Power consumption110 V: 17.35 W; 220 V: 17.95 W
Power consumption with PoE110 V: 83.17 W; 220 V: 82.63 W
Heat dissipation283.79 BTU/hr
Operating temperature-5°C to 50°C (23°F to 122°F)
Storage temperature-25°C to 70°C (-13°F to 158°F)
Operating humidity10% to 90%, relative, noncondensing
