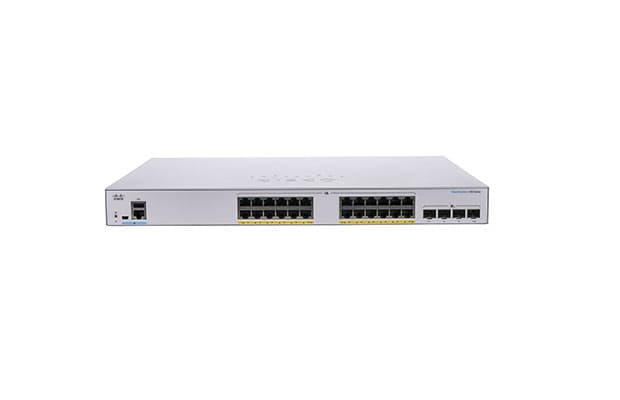

Cisco CBS350-24P-4G-EU image 1
Switches
Cisco CBS350-24P-4G-EU
24-port Gigabit PoE+ managed switch with four SFP uplinks and a 195 W PoE budget.
- 24 x Gigabit Ethernet PoE+ ports plus 4 x Gigabit SFP uplinks
- 195 W PoE budget, 802.3af/at on all 24 access ports
- 56 Gbps switching capacity, 41.66 Mpps forwarding rate
- Fanless, limited lifetime warranty with next-business-day replacement
Technical details
Specifications
24 specification rows
ModelCBS350-24P-4G-EU
Total system ports28 x Gigabit Ethernet (24 x PoE+ RJ-45, 4 x SFP)
PoE budget195 W dedicated to PoE
Switching capacity56 Gbps
Forwarding rate41.66 Mpps (64-byte packets)
Dimensions (W x D x H)445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in)
Weight3.53 kg (7.78 lb)
CoolingFanless
MTBF at 25°C698,220 hours
WarrantyLimited lifetime with next business day advance replacement (where available)
Switching
VLANsUp to 4,094 simultaneous VLANs
Spanning TreeSTP, RSTP, MSTP, PVST+ and Rapid PVST+
Link aggregationLACP and static link aggregation
MulticastIGMP snooping with querier
IPv4 routingWire-speed routing, up to 990 static routes and 128 IP interfaces
IPv6 routingWire-speed IPv6 routing
Dynamic routingRIPv2
Policy-based routingIPv4 and IPv6 ACL-based next-hop selection
Power
Power consumption110 V: 34.42 W; 220 V: 34.42 W
Power consumption with PoE110 V: 239.7 W
Heat dissipation820.62 BTU/hr
Operating temperature-5°C to 50°C (23°F to 122°F)
Storage temperature-25°C to 70°C (-13°F to 158°F)
Operating humidity10% to 90%, relative, noncondensing
